3mx4_AH : 3D-footprint complex

structure name	DNA BINDING AND CLEAVAGE BY THE GIY-YIG ENDONUCLEASE R.ECO29KI INACTIVE VARIANT E142Q
reference	Stoddard et al.
source	ESCHERICHIA COLI
experiment	X-ray (resolution=2.50, R-factor=?)
reference complex	3mx4_D
links to other resources	NAKB PDIdb DNAproDB
protein sequence	> 3mx4_A interface=103,161,162,163,168, hnkkfdrsehvyrndsflelikdavrffsgtpvhslppperfqgagvyalyytghyslydeysrinrkaynlpiyvgkavpagwrqsrisdhetragselsnRirehgrniaktsnldlcdfscrfvifeatgsdmistvqaalikiykplwntvvdgfgNHTpgagRfaqaksdwdvihpgrewaekctgvhsepyfieerikqyfsksnft > 3mx4_H interface=161,162,163,168, hnkkfdrsehvyrndsflelikdavrffsgtpvhslppperfqgagvyalyytghyslydeysrinrkaynlpiyvgkavpagwrqsrisdhetragselsnrirehgrniaktsnldlcdfscrfvifeatgsdmistvqaalikiykplwntvvdgfgNHTpgagRfaqaksdwdvihpgrewaekctgvhsepyfieerikqyfsk

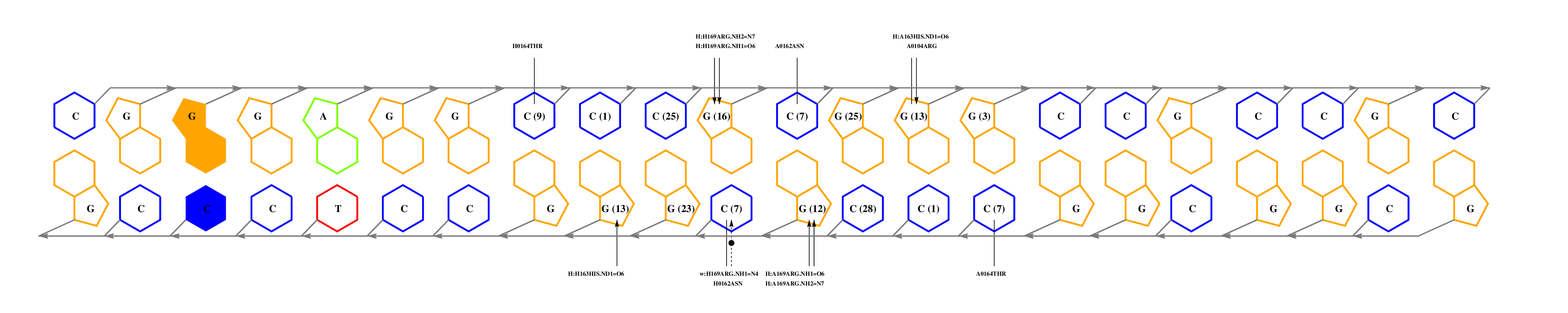

interface signature	RNHTR/NHTR

readout + contact

# IC=4.735 IC/col=0.676 n_of_columns=7

A |   4   6   1   0   6  11  19
C |  74  64   0  96  15   5  19
G |   4  14  94   0  66  76  40
T |  14  12   1   0   9   4  18
