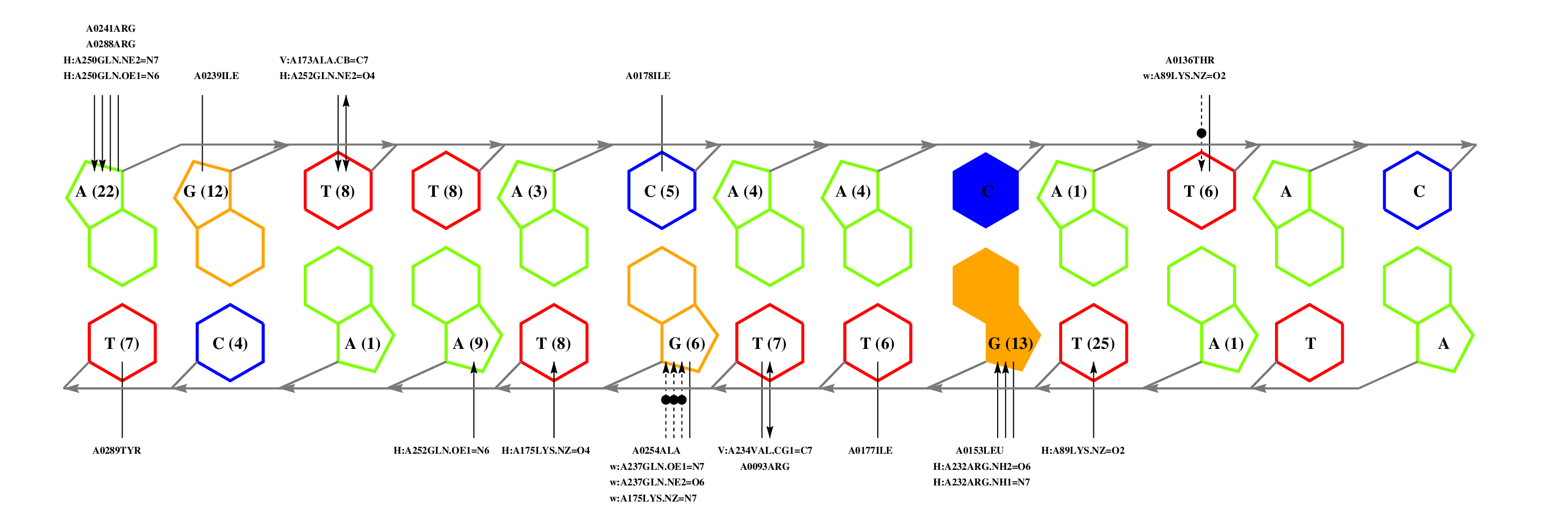

interface graph thumbnail
legend  pdf

structure nameESCHERICHIA COLI REPLICATION TERMINATOR PROTEIN (TUS) H114A MUTANT COMPLEXED WITH DNA- TERA LOCK.
(DNA replication terminus site-binding protein)
referenceNature 525 394 2015
sourceEscherichia coli (strain K12) / Escherichia coli (strain K12)
experimentX-ray (resolution=2.35, R-factor=0.222)
structural superfamilyReplication terminator protein Tus;
sequence familyDNA replication terminus sitebinding protei;
redundant complexes4xr0 4xr1 4xr3 2ewj 1ecr
reference complex2i06_A
links to other resourcesNAKB PDBSum PDIdb DNAproDB
protein sequence
interface signatureKRTLAKIIRVQIRQQARY

Estimated binding specificities ?

readout + contactlogo
# IC=12.070 IC/col=1.097 n_of_columns=11 specificity:
A |  96  10   0   0  96   0  96  64   0  96  10
C |   0  10   0   0   0  96   0  12  96   0  10
G |   0  74   0   0   0   0   0  10   0   0  10
T |   0   2  96  96   0   0   0  10   0   0  66
scan!
