5d2s_A : 3D-footprint complex

structure name	CRYSTAL STRUCTURE OF STPR FROM BOMBYX MORI IN COMPLEX WITH 18-BP DNA CONTAINING FOUR REPETITIVE UNITS OF ATAC (Fibroin-modulator-binding protein-1)
reference	'Nucleic ? ? 2016
source	Bombyx mori
experiment	X-ray (resolution=2.20, R-factor=0.228)
reference complex	5d23_A
links to other resources	NAKB PDIdb DNAproDB
protein sequence	> 5d2s_A interface=9,13,14,16,17,20,21,32,36,37,39,40,44,55,59,60,62,63,66,67,78,82,85,86,89,90, etseeraaRlakMSaYAaqRLanespeqratRlkrMSeYAakrLssetreqraiRlarMSaYAarRLanetpaqrqaRllrMsaYAakRQa

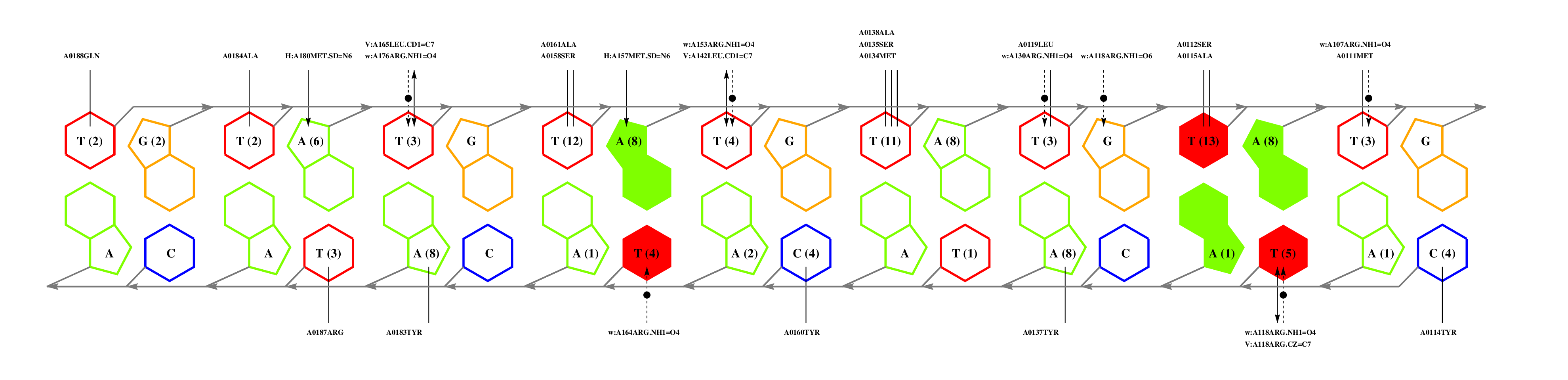

interface signature	RMSYARLRMSYALRMSYARLRMYARQ

Estimated binding specificities ?

readout + contact

# IC=14.162 IC/col=0.944 n_of_columns=15

specificity:

A |  96   0  24   0  96   7   7   0  96   0  24   0  96   7  16
C |   0   0  24   0   0   7  14   0   0   0  24   0   0   7   7
G |   0   0  24   0   0   9  75   0   0   0  24   0   0  14  66
T |   0  96  24  96   0  73   0  96   0  96  24  96   0  68   7

scan!
