8k4l_AB : 3D-footprint complex

structure name	CRYSTAL STRUCTURE OF NRF1 HOMODIMER IN COMPLEX WITH DNA
reference	Min et al. 'To ? ? ?
source	Homo sapiens
experiment	X-ray (resolution=2.10, R-factor=?)
reference complex	8k4l_B
links to other resources	NAKB PDIdb DNAproDB
protein sequence	> 8k4l_A interface=135,136,139,175,177,178, nstaadevtahlaaagpvgmaaaaavatgkkrkrphvfesnpsirkrqqtrllrklratldeyttrvgqqaivlcispskpnpvfkvfgaaplenvvrkyksmiledlesalaenselppltidgipvsvdkmtQAqlRafipemlkystgrgkpgwgkesckpiwwpedipwaNvRSdvrteeqkqrvswtqalrtivkncykqhgredllyafe > 8k4l_B interface=98,99,102,138,140,141, hvfesnpsirkrqqtrllrklratldeyttrvgqqaivlcispskpnpvfkvfgaaplenvvrkyksmiledlesalaselppltidgipvsvdkmtQAqlRafipemlkystgrgkpgwgkesckpiwwpedipwaNvRSdvrteeqkqrvswtqalrtivkncykqhgredllyaf

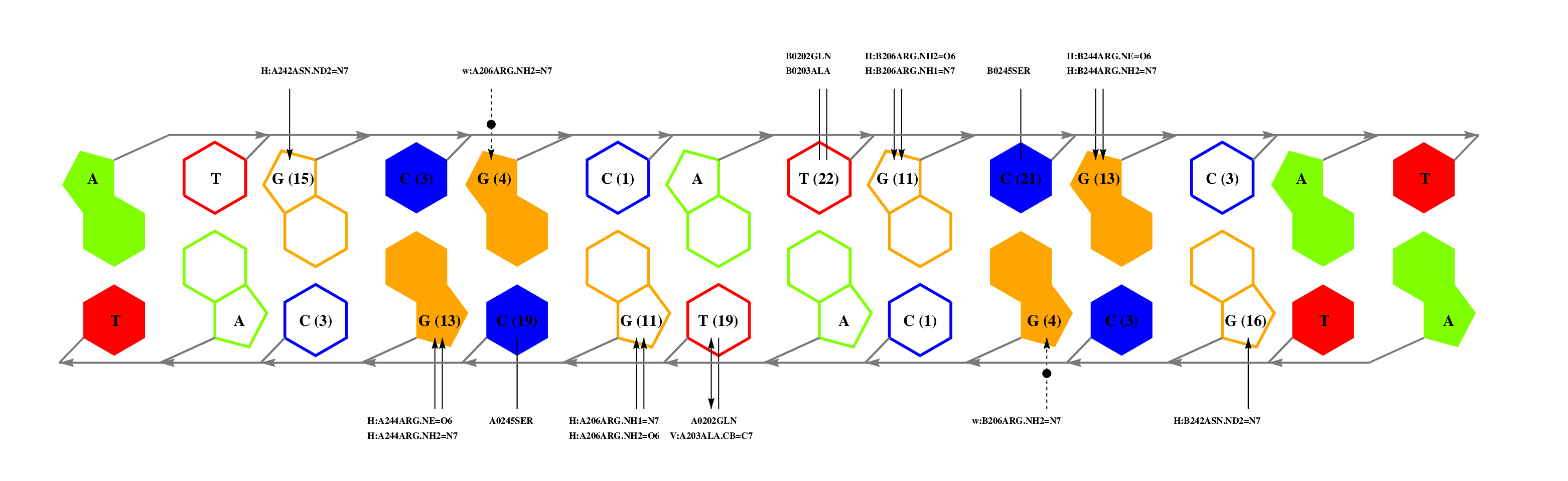

interface signature	QARNRS/QARNRS

Estimated binding specificities ?

readout + contact

# IC=10.404 IC/col=1.040 n_of_columns=10

specificity:

A |   8   0   8   0  96   8   0   0   0   8
C |   8  96   8  96   0   8   0  96   0  72
G |  72   0  80   0   0   8  96   0  96   8
T |   8   0   0   0   0  72   0   0   0   8

scan!
